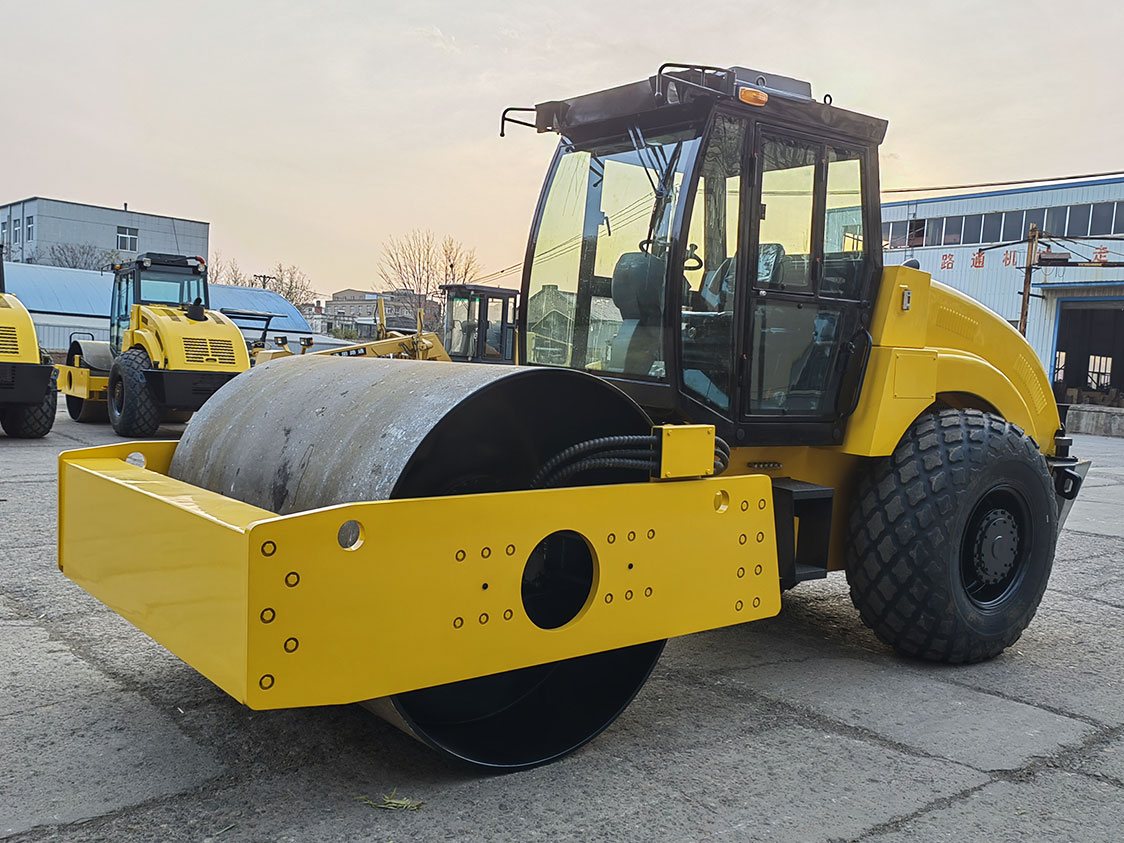

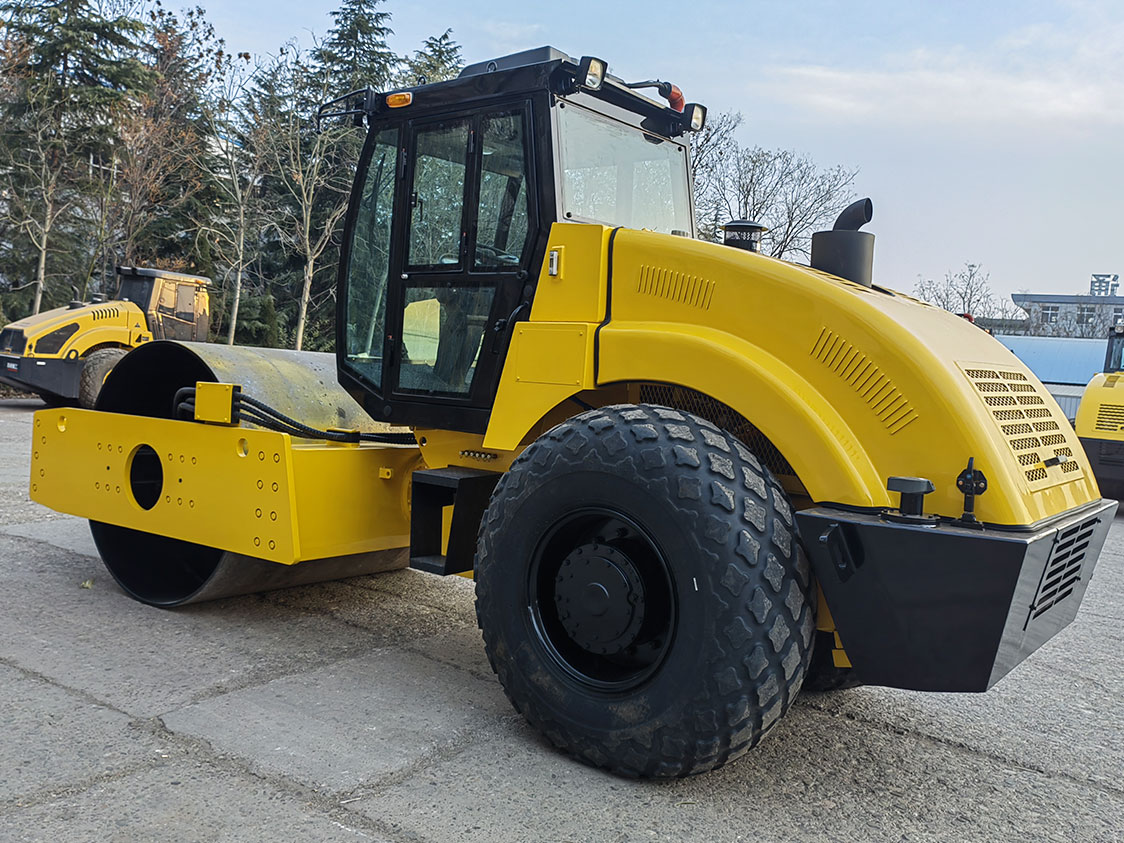

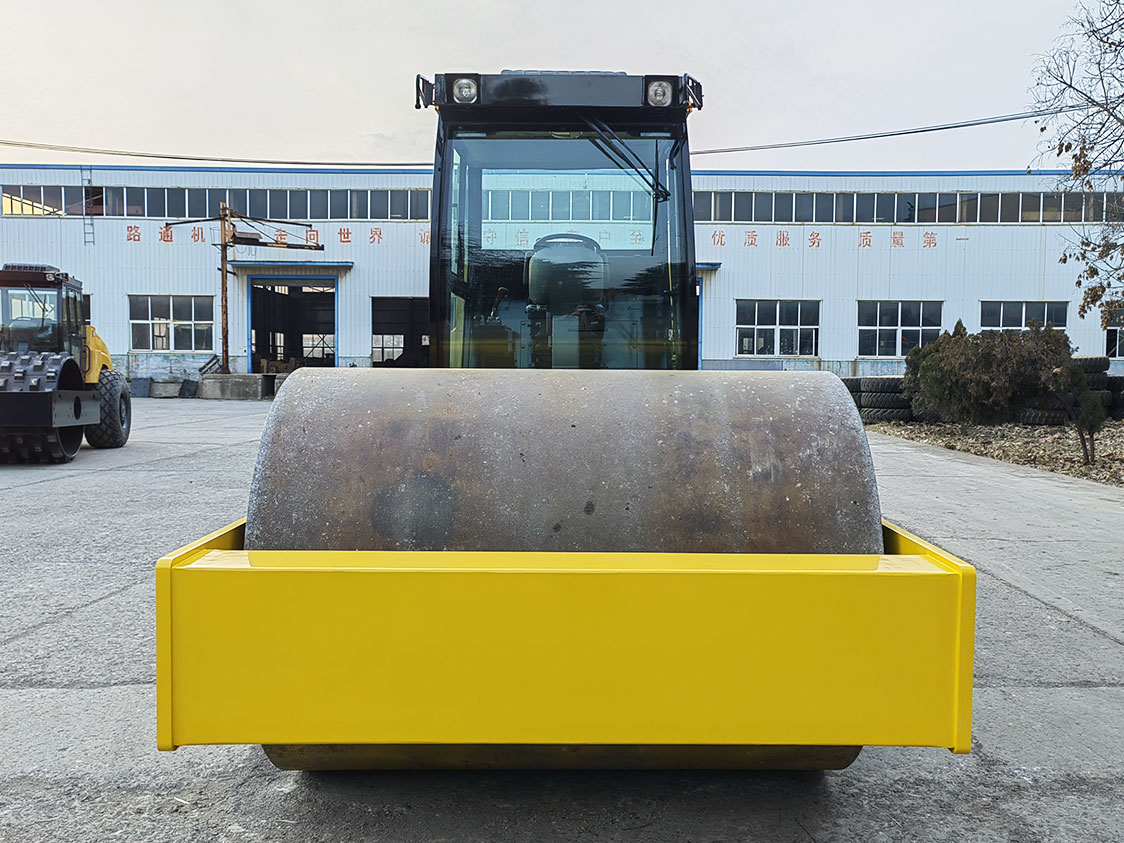

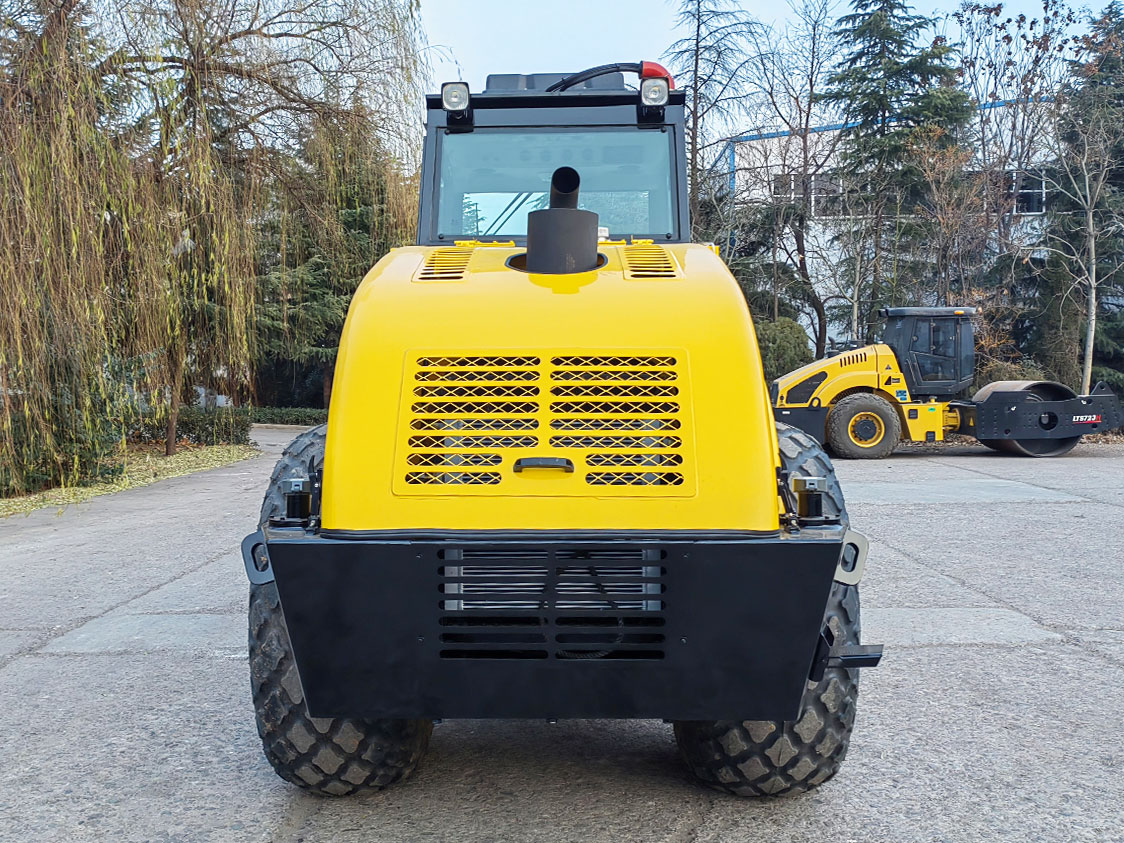

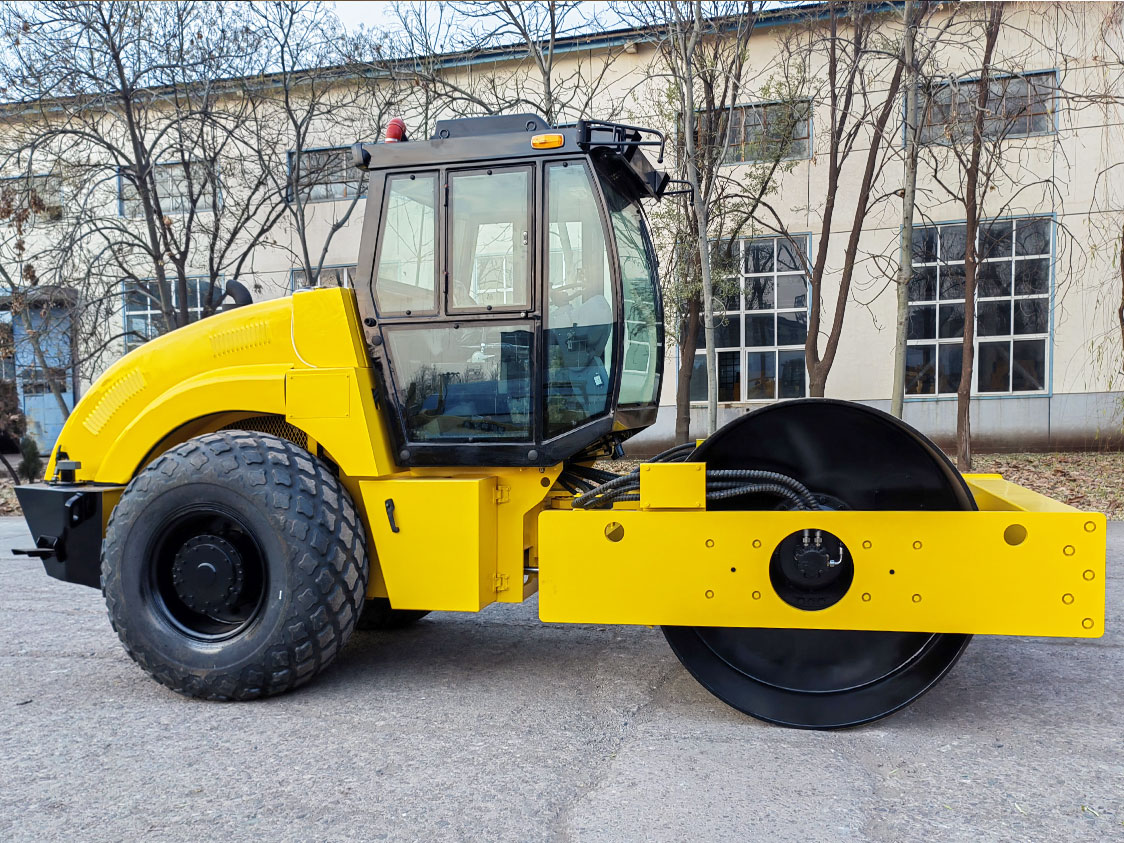

LTD214H

A fully hydraulic vibratory roller produced using advanced foreign technology and imported key components. This machine is a heavy-duty vibratory roller with large working mass and strong excitation force. Therefore, it is a compaction equipment for large-area, high-quality, high-efficiency, mechanized construction. It is suitable for rolling non-viscous materials, such as gravel, gravel, sand and gravel mixture, sandy soil, etc. It also has good compaction effect on base materials; this machine is suitable for highways, mine roads, large dams, and important ports. It is an ideal equipment for foundation compaction in industrial sites and other projects.

Main features:

▲The power configuration is a Cummins National III series supercharged diesel engine with a large power reserve coefficient, which is suitable for towing operations at altitudes above 4,000 meters;

▲Fully hydraulic, two-wheel drive, dual frequency and double amplitude; articulated steering, two Continuously variable speed, advanced technology; oil-cut braking, safe and reliable;

▲Streamlined lines, arc-shaped windshield, and curved hood form a unique appearance style;

▲Hydraulic components are selected from the American SAUER company;

▲Detachable convex steel wheels are optional.

The main technical parameters

MODEL		LTD214H
Operating mass	Kg	14000
Static linear load	N/cm	400
Vibrating amplitude	Mm	1.7/0.8
Vibrating frequency	Hz	28/35
Centrifugal force	KN	290/180
Travel speed	Km/h	12
Grade ability	%	35
Turning radius	mm	7000
Overall dimension	mm	5900×2280×3050
Vibration round width	mm	2100
Wheelbase	mm	3185
Ground clearance	mm	432
Diesel power	kW	110
Diesel model		CUMMINS QSB5.9

LTD214H
LTD214H
LTD214H
LTD214H
LTD214H
LTD214H
