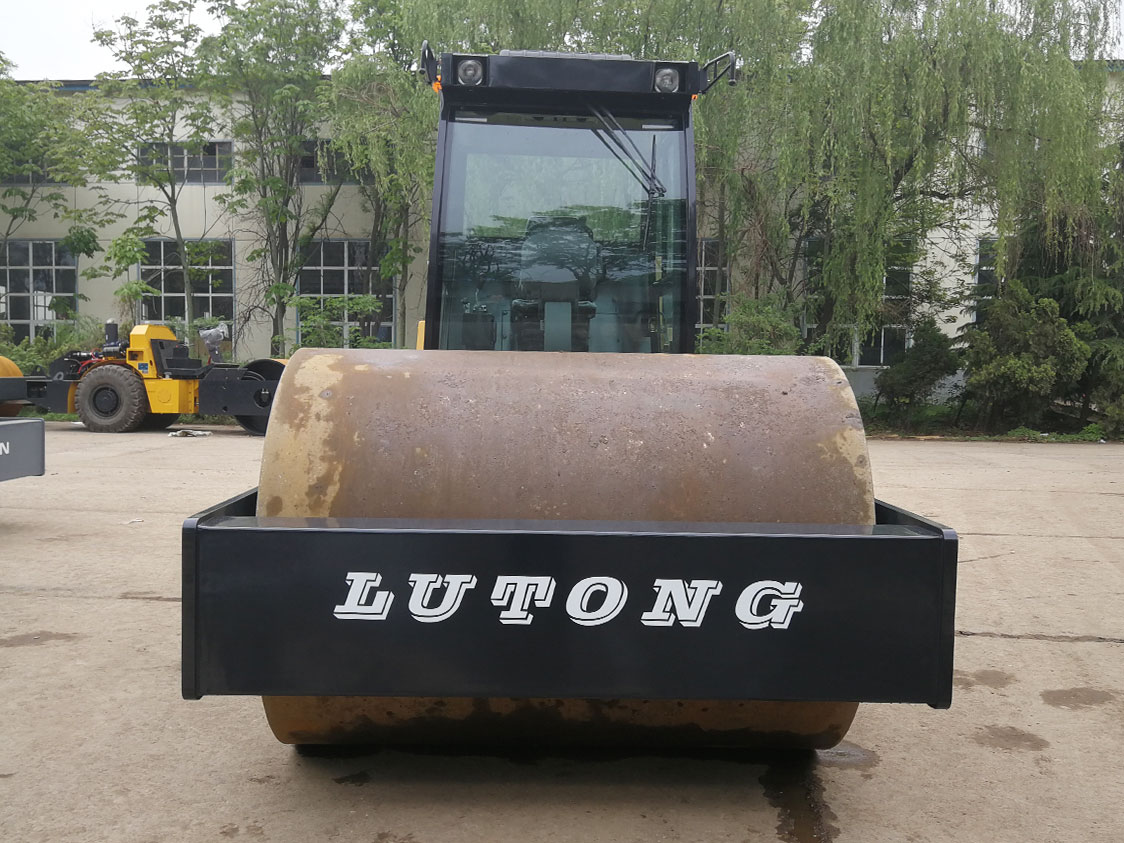

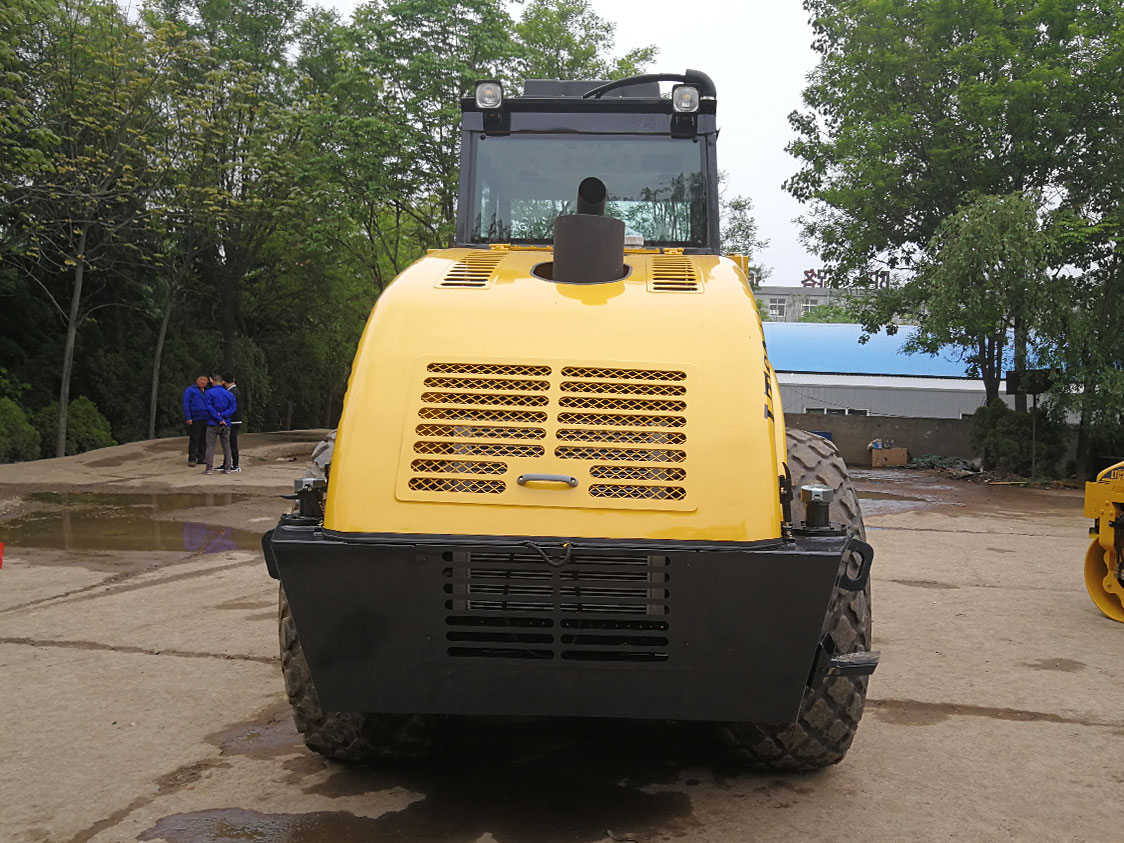

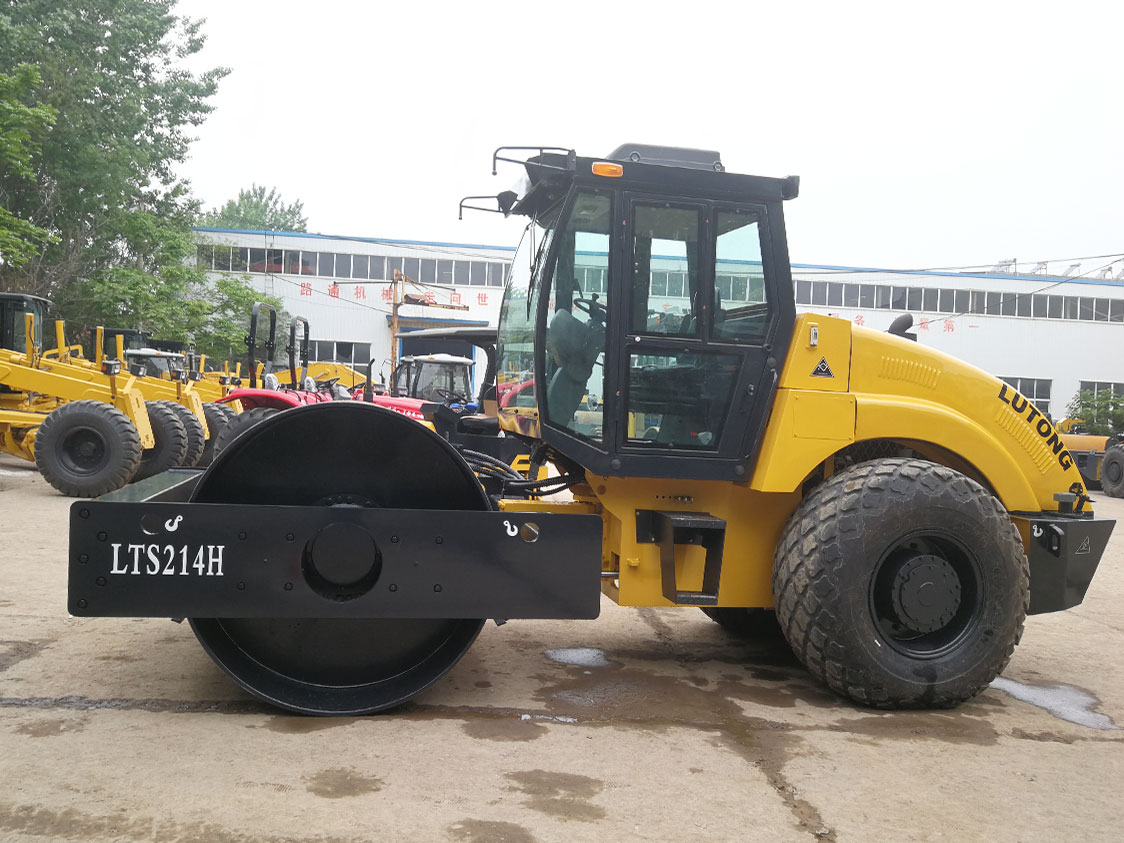

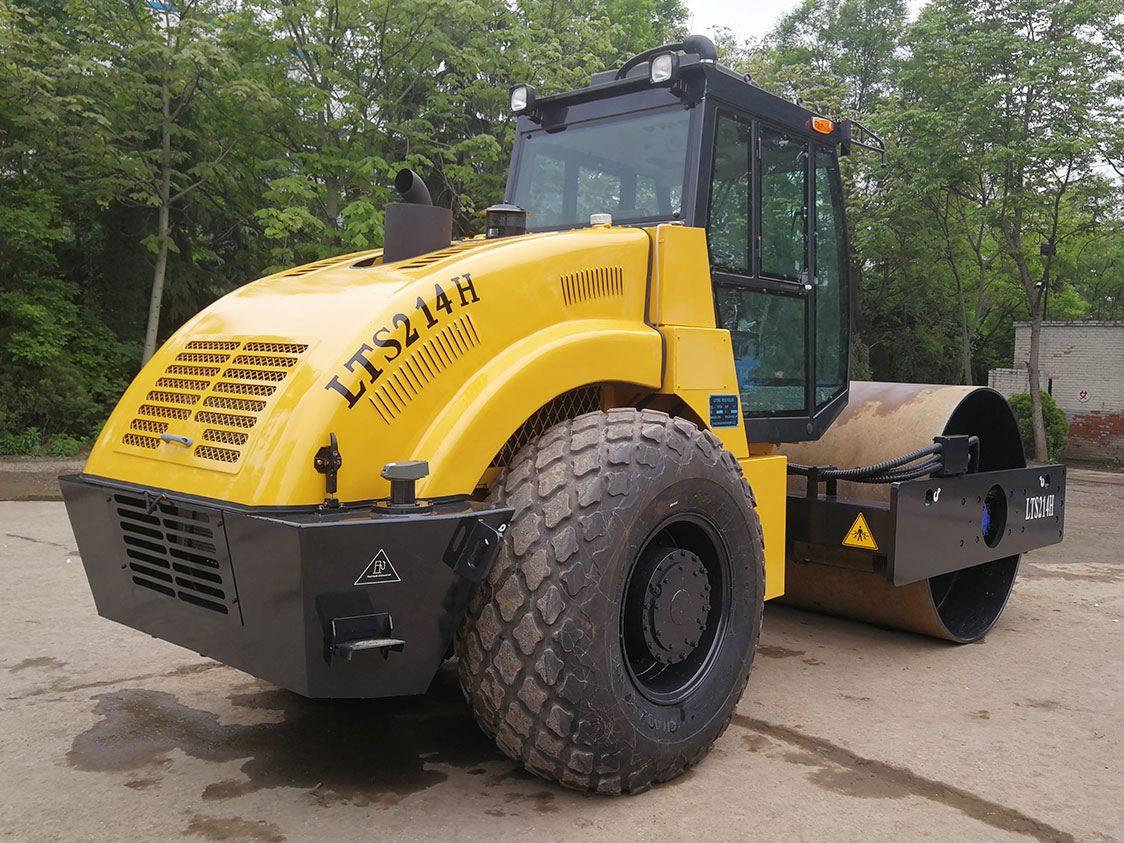

LTS214H

A fully hydraulic vibratory roller produced using advanced foreign technology and imported key components. This machine is a super-heavy vibratory roller with large working mass and strong excitation force. Therefore, it is a compaction equipment for large-area, high-quality, high-efficiency, mechanized construction. It is suitable for rolling non-viscous materials, such as gravel, gravel, sand and gravel mixture, sandy soil, etc. It also has good compaction effect on base materials; this machine is suitable for highways, mine roads, large dams, and important ports. It is an ideal equipment for foundation compaction in industrial sites and other projects.

Main features:

▲The power configuration is a Cummins supercharged National III diesel engine with a large power reserve coefficient, which is suitable for construction at altitudes above 4,000 meters.

▲Hydraulic single drive, hydraulic vibration, hydraulic articulated steering, advanced technology; oil-cut braking, safe and reliable.

▲Streamlined lines, arc-shaped windshield, and curved hood form a unique appearance style.

▲The main hydraulic components are imported brands.

The main technical parameters

MODEL		LTS214H
Operating mass	Kg	14000
Static linear load	N/cm	326
Vibrating amplitude	Mm	1.7/0.8
Vibrating frequency	Hz	29/35
Centrifugal force	KN	290/180
Travel speed	Km/h	12
Grade ability	%	30
Turning radius	mm	7000
Overall dimension	mm	5900×2280×3050
Vibration round width	mm	2100
Wheelbase	mm	3185
Ground clearance	mm	400
Diesel power	kW	110
Diesel model		CUMMINS QSB5.9
Water tank capacity	L	无

LTS214H
LTS214H
LTS214H
LTS214H

Frequently asked questions

Show more FAQ Show less FAQ

What should I do if I have no import experience?

We can provide home delivery service, you only need to wait at home to receive the goods.
Can you support installment payment?

Sorry, we are temporarily unable to provide installment services.
How should I solve the problem if the machine fails during use?

1) In principle, all machines do not provide warranty
2) We can provide you with free technical support and provide high-quality and low-cost parts for you to choose from.
How do I purchase?

1) Agree on the brand and model of the machine.
2) Agree on the price and payment terms of the machine (CIF\FOB\EXW)
3) Sign the contract and pay the payment
4) Ship to the delivery location agreed by the buyer
5) Buyer inspects and receives goods
Are your machines guaranteed?

The company provides three types of machines
1) High-quality remanufactured machines are remanufactured in machine brand agent repair shops. The entire process is inspected and repaired by the agent's maintenance engineers. You can visit and inspect it at any time. The entire remanufacturing process is transparent and open.
2) The machine in its original state is tested on site by a test engineer who has worked for more than 10 years. The original state information of the machine is recorded on site and fed back to the customer, who then decides whether to purchase and repair it.
3) Brand new machines can be provided. In China's new machine sales network, there are more than 5 suppliers of each brand. Find suppliers with suitable prices and guaranteed supply.
How can I find the right machine for me?

1) Choose according to the working environment of the machine
2) Choose based on common local brands and models to facilitate repair, maintenance and sales.
3) Choose the condition of the machine according to your own budget
4) Choose a reliable supplier with guaranteed funds and authentic machines.
Can your equipment be visited?

Henan Gallant Machinery Company welcomes you to visit the site for testing. It is located in Zhengzhou City, Henan Province, China.

High quality is the standard and confirmed by our team of dedicated engineers.
Safe and reliable. We are an export company certified by the Chinese government
Every day available for help, service and contact. Worldwide delivery.
